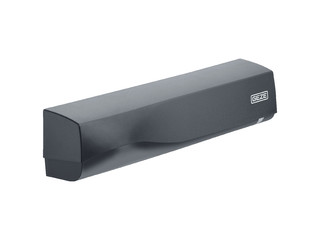

GC 363+ * Combined detector for activating and protecting automatic sliding doors with ten different infrared light curtain configuration settings
- Radar movement detector with infrared light curtain
- Reliable detection up to an installation height of 3500 mm
- Ten adjustable light curtain configurations without additional light prisms
- Reduced installation work needed due to the combination of activation and protection in a single device
- Movement direction detection and cross-traffic fade-out reduces energy consumption in the building
- All settings can be changed via remote control
- Auxiliary LEDs aid in optimal positioning of the interior light curtain in front of the door leaves during commissioning
This active infrared detector secures the hazardous area of sliding doors in accordance with EN 16005 / DIN 18650 and on revolving doors in accordance with EN 16005. A selection of ten active infrared detector settings allows for precise protection of various door situations. The optimised housing prevents undesirable insects from getting inside. In addition, the active infrared windows can be cleaned or replaced as needed after they are removed.
Application Areas
- Activation and protection of automatic sliding doors
- Interior and exterior doors
- Complicated flooring, such as reflective floors, entrance mats, metal rails
- Wall, ceiling, or integrated ceiling installation
Technical data
| GC 363+ | |
| Dimensions | 270 x 58 x 58 mm |
| Technology | Electromagnetic radar waves/active infrared beams |
| Number of active infrared detectors | 2 |
| Operating voltage | 12-24 V DC/AC |
| Switching voltage | 42 V |
| Switching current | 100 mA |
| Operating current | 125 mA |
| IP rating | IP54 |
| Connection type | System plug-type connector |
| Connector cable length | 2600 mm |
| Adjustability | with push of button, with remote control |
| Installation height (min.) | 2000 mm |
| Installation height (max.) | 3500 mm |
| Service temperature | -25 - 55 °C |
| Humidity | 0-95 % relative, non-condensing |
| Standard conformity | EN 16005, DIN 18650 |
